Custom switched-mode power supply

Model

TP171A 7.5W

7.5W Class II adapter SMPS

7.5W class II adapter, single phase, single output power supply.

Compliance
Discuss this design View specifications

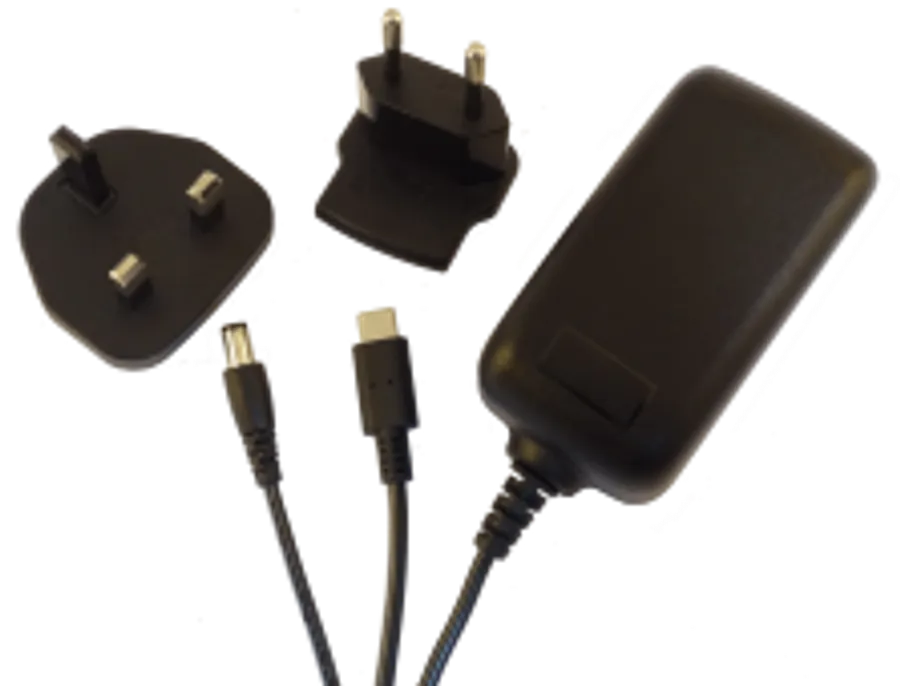

7.5W Class II adapter SMPS

Key properties

At a glance

Nominal output power
7.5W
Single output voltage
+5Vdc
Other voltages
Upon request
Model reference
TPSF-7.5-1-A
Application
Adapter
Input voltage
Universal input range
Construction
Enclosed
Compliance
UL

Datasheet

Technical specifications

Protection
Overview 1
  • 7.5W power supply
Application 1
  • Class II adapter
Input 4
  • Universal input voltage range: 90-264Vac
  • Leakage current: 0.25 mA RMS max
  • Efficiency: > 75%
  • Class II
Output 3
  • Nominal output power: 7.5W
  • Single output voltage: +5Vdc
  • Other voltages upon request
Protections 2
  • Overload / short circuit protection
  • Fuse protected AC input
Certificates 1
  • UL
Safety & EMC 5
  • IEC/EN/UL 60950-1
  • IEC/EN 61000-4-2
  • IEC/EN 61000-4-3
  • IEC/EN 61000-4-4
  • IEC/EN 61000-4-5
Cooling 1
  • Free air convection
Construction 1
  • Adapter housing
Connections 2
Input
Interchangeable AC connector, with SAA, EU, UK and US plug
Output
DC plug 5.5x2.1x9.5mm; USB-C; Other configurations upon request
Dimensions & weight 2
Dimensions (L x W x H)
79 x 41 x 40 mm3.1 x 1.6 x 1.6 inch
Weight
0.1 KG

Every new project is engineered to the standards and requirements in force today, and where we see room to improve on your spec, we'll say so.

Built to your specification

Need a variant of the TP171A?

Every Total Power supply is engineered around a client's electrical, mechanical and certification requirements. Tell us your target and we design to it.

Discuss your project

Total Power Europe · TP171A · totalpower.nl
