Custom switched-mode power supply

Model

TPFB-64-1-A 64W

64W Class II electric garage doors power supply

64W Power supply for electric garage doors.

Discuss this design View specifications

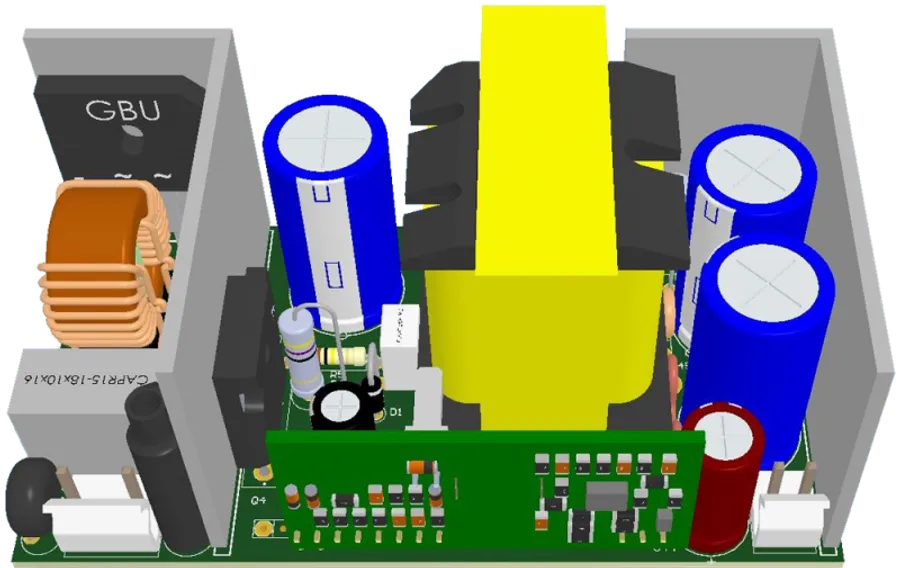

64W Class II electric garage doors power supply

Key properties

At a glance

Nominal output power
64W
Peak output power
200W (60 sec.) / 240W (10 sec.)
Single output voltage
32V / 2A nom. (linear decline to 16V / 16A)
Application
Doors & access
Input voltage
Universal input range
Construction
Open frame

Datasheet

Technical specifications

Protection
Overview 3
  • 64W power supply
  • Supplies high peak currents for electric garage door motors
  • Delivers 3× nominal output power
Application 1
  • Electric garage doors
Input 5
  • Universal input: 90-264Vac
  • No load: 200mW; 30V/8mA: 500mW
  • Leakage current: 0.5mA RMS max.
  • Efficiency: >80%
  • Class II
Output 3
Nominal
64W
Peak
200W (60sec) / 240W (10sec)
Single output
32V/2A nom. (32V/0A declining to 16V/16A)
Protections 5
  • Under/overvoltage protection
  • Overload/short circuit protection
  • Hiccup restart functionality
  • Fuse-protected AC input
  • Overtemperature protection
Safety & EMC 20
  • IEC/EN/UL 60335-1
  • IEC/EN/UL 60335-2-75
  • IEC/EN/UL 60950-1
  • IEC 61558-1
  • EN 55014
  • IEC/EN 61000-3-2
  • IEC/EN 61000-3-3
  • IEC/EN 61000-4-2
  • IEC/EN 61000-4-3
  • IEC/EN 61000-4-4
  • IEC/EN 61000-4-5
  • IEC/EN 61000-4-6
  • IEC/EN 61000-4-11
  • IEC/EN 61000-6-1
  • IEC/EN 61000-6-2
  • IEC/EN 61000-6-3
  • IEC/EN 61000-6-4
  • 2004/108/EC EMC directive
  • 2006/95/EC Low voltage directive
  • 2011/65/EC ROHS
Cooling 1
  • Free air convection
Construction 1
  • Open frame
Connections 1
Input/Output
Leoco 3941
Dimensions & weight 2
Dimensions (L x W x H)
60×60×100mm (2.4×2.4×4 inch)
Weight
0.26kg
