Custom switched-mode power supply
Model
TP102A 5W

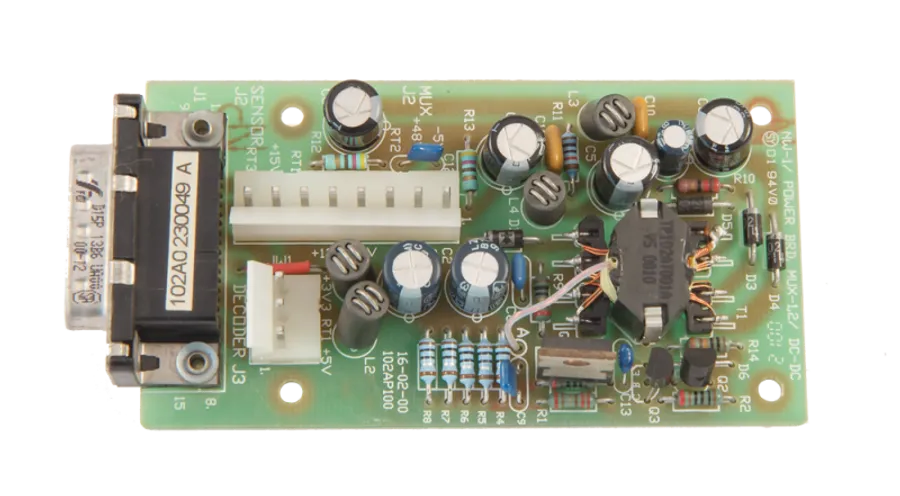

5W DC-DC Audio and video amplifier power supply
Self oscillating DC-DC converter with 3 output voltages. The converter is used in a professional audio- and video amplifier (CCTV).
Compliance
Key properties
At a glance
- Nominal output power
- 5W
- Multiple output voltages
- +5V, -5V, +48V
- Model reference
- TPFB-5-3-A
- Application
- Audio, ATX / ICT
- Input voltage
- Low voltage AC DC
- Construction
- Open frame
- Compliance
- CE
Datasheet
Technical specifications
Overview 6
- 5W power supply
- Self oscillating flyback converter topology
- Very low noise level on all three outputs
- Galvanic isolated input and outputs
- PCB is also used as an interconnection board
- Custom made
Application 1
- Professional audio- and video amplifier in security systems
Input 1
- Input voltage range
- 10.8 - 13.2 Vdc
Output 2
- Nominal output power
- 5W
- Multiple output voltages
- +5V, -5V, +48V
Protections 2
- Overload / short circuit protection
- Overtemperature protection
Certificates 1
- CE marked
Cooling 1
- Free air convection
Construction 1
- Open frame
Connections 2
- Input
- 15-pole sub-D connector
- Output
- Leoco connectors
Dimensions & weight 2
- Dimensions (L x W x H)
- 95 x 50 x 25 mm3.7 x 2 x 0.98 inch
- Weight
- 60g
