Custom switched-mode power supply

Model

TP161A 4.2W

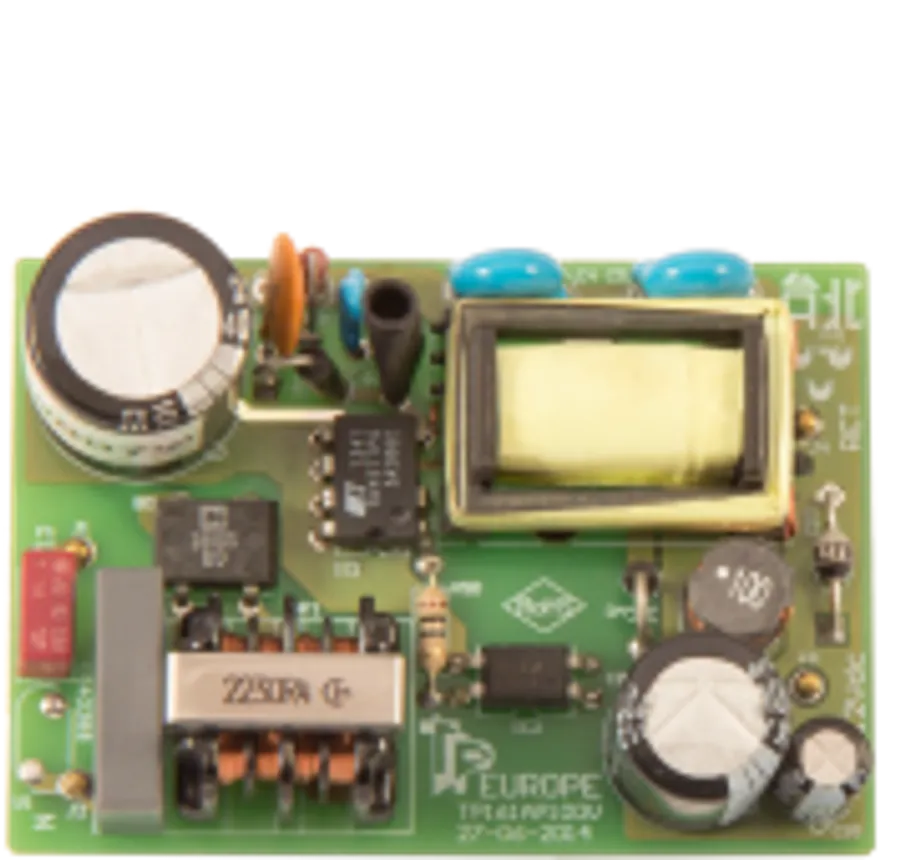

4.2W UL 61010-1 measurement, control and laboratory SMPS

Power supply is designed to supply the electronics of electrical equipment for measurement, control and laboratory use.

Compliance
Discuss this design View specifications
4.2W UL 61010-1 measurement, control and laboratory SMPS

Key properties

At a glance

Nominal output power
4.2W
Peak output power
7.5W
Single output voltage
+12V
Model reference
TPFB-4.5-1-A
Application
Measurement & control
Input voltage
Universal input range
Construction
Open frame
Compliance
UL

Datasheet

Technical specifications

Protection
Overview 3
  • 4.2W power supply
  • Low stand-by power
  • Custom made
Application 1
  • Electrical equipment for measurement, control and laboratory use
Input 5
  • Universal input voltage range: 85 - 264Vac
  • Leakage current: < 1mA RMS
  • Efficiency: > 75%
  • Class II
  • Stand-by power: < 300 milliwatt
Output 3
Nominal output power
4.2W
Peak output power
7.5W
Single output voltage
+12V
Protections 6
  • Under / overvoltage protection
  • Overtemperature protection
  • Overload / short circuit protection
  • Time related output power / overcurrent protection
  • Automatic fault recovery (hiccup restart) functionality
  • Microprocessor controlled protections
Certificates 1
  • UL
Safety & EMC 21
  • 2011/65/EU
  • ANSI/UL 61010-1: 3rd edition
  • EN61010-1:2010
  • IEC 61010-1:2010 + cor.
  • EN61326-1:2013 Radiated emission class B
  • IEC/EN 61558-1
  • EN 55014
  • IEC/EN 61000-3-2
  • 61000-3-3
  • IEC/EN 61000-4-2
  • 61000-4-3
  • 61000-4-4
  • 61000-4-5
  • 61000-4-6
  • 61000-4-11
  • IEC/EN 61000-6-1
  • 61000-6-2
  • 61000-6-3
  • 61000-6-4
  • 2004/108/EC
  • 2006/95/EC
Cooling 1
  • Free air convection
Construction 1
  • Open frame
Connections 1
Input/output
4 solder pins
Dimensions & weight 2
Dimensions (L x W x H)
64 x 45 x 24 mm2.5 x 1.8 x 1 inch
Weight
0.15 kg

Every new project is engineered to the standards and requirements in force today, and where we see room to improve on your spec, we'll say so.

Built to your specification

Need a variant of the TP161A?

Every Total Power supply is engineered around a client's electrical, mechanical and certification requirements. Tell us your target and we design to it.
